ZeroDT Conduit Junction Box Surge Protection
We’ve created a superior line of gigabit ethernet surge protection products. Our units protect any device connected over ethernet.
Choose your product by clicking one of the red buttons below.

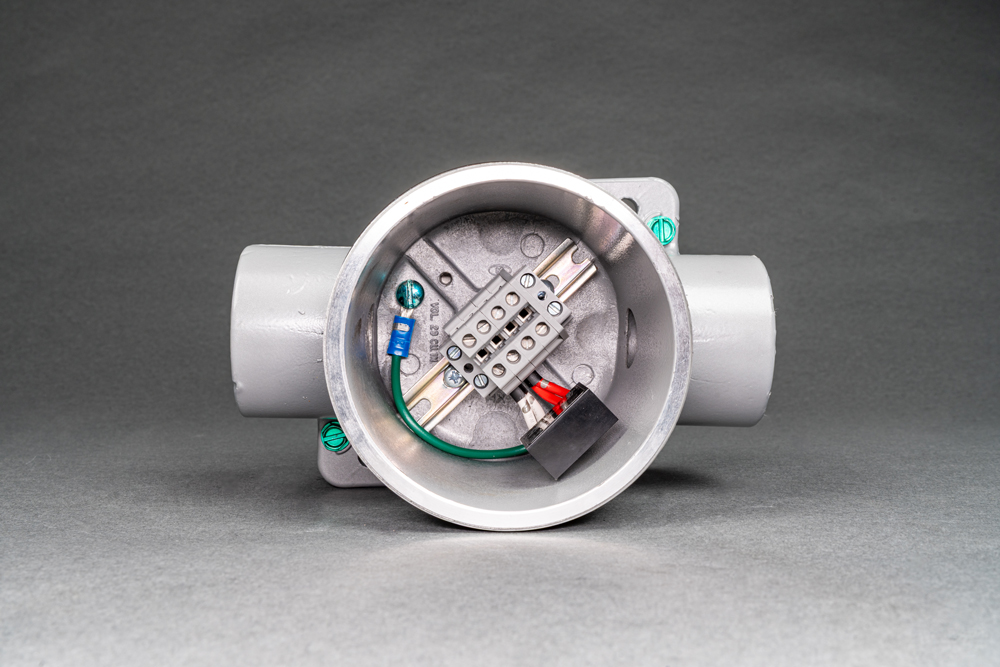

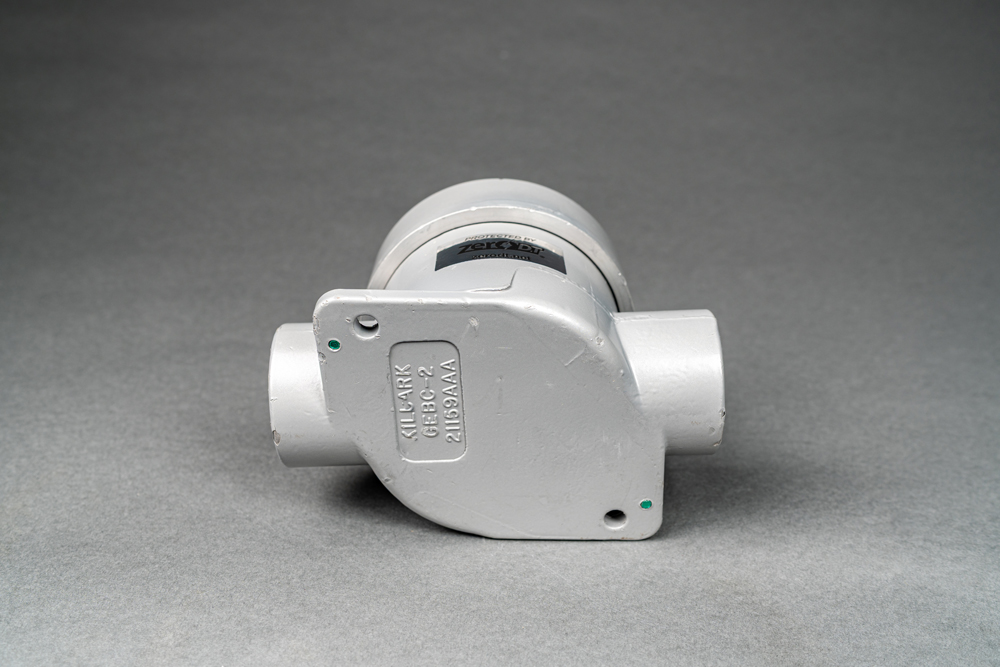

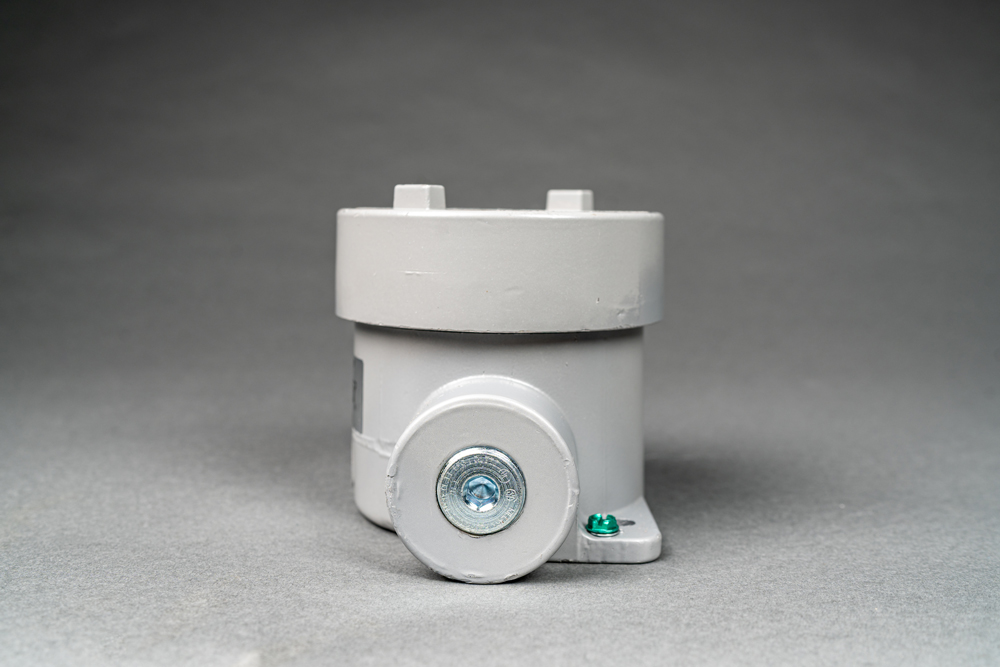

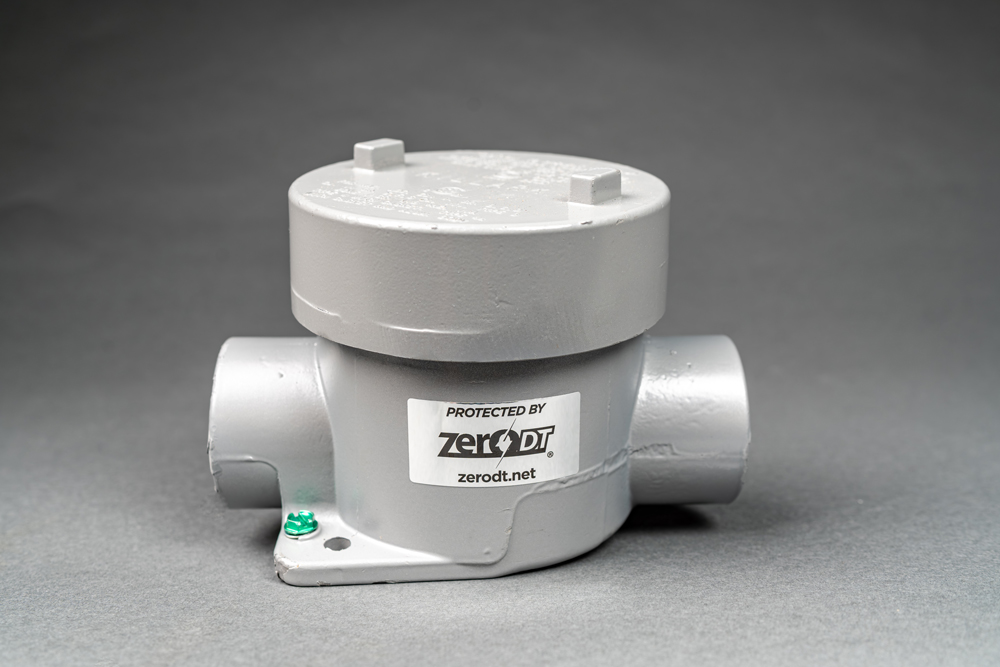

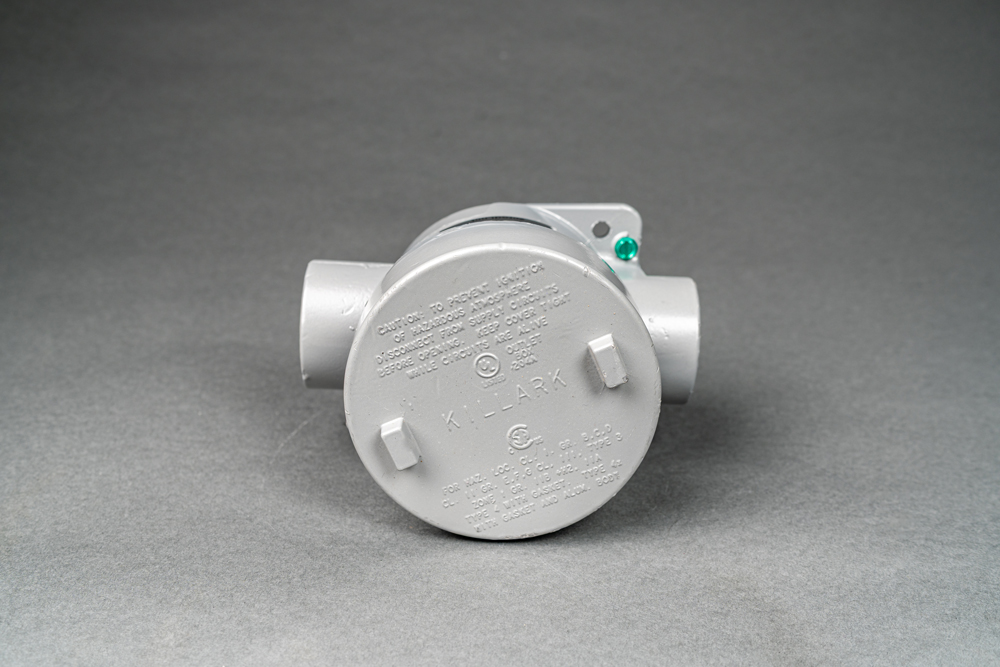

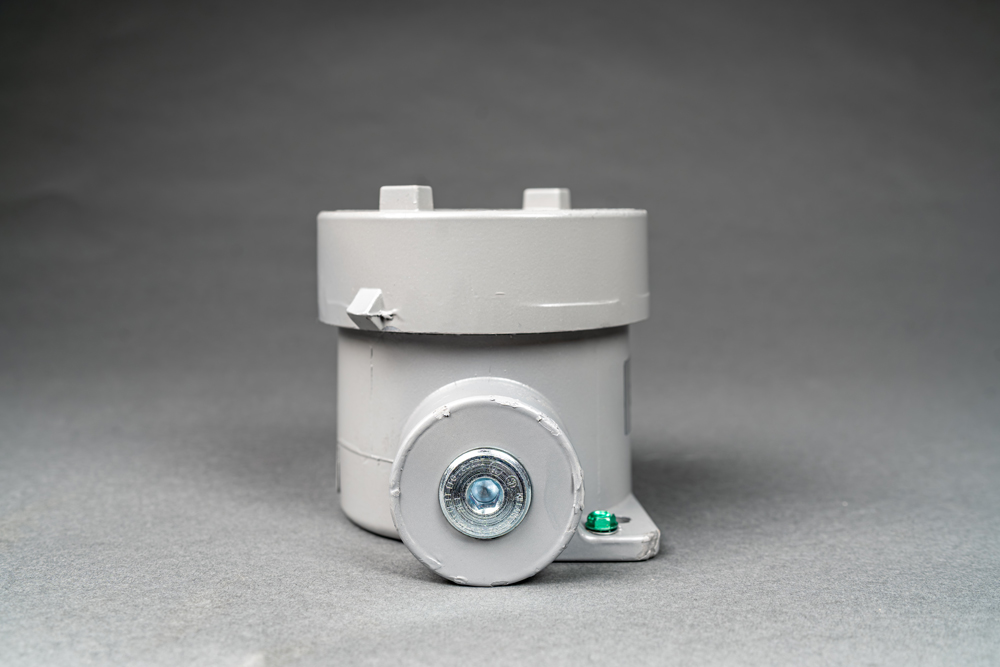

ZeroDT FM-2
- Single loop or 2-wire protection inside a conduit enclosure for hazardous locations
- Analog signals (4-20 mA), discrete digital inputs/signals, pulsed inputs/outputs, RS-485/422/232 & digital communications as well as DC power lines.
The FM-2 can be utilized as a ‘conduit junction box’ (with built-in surge protection) to install next to the device you want to protect. The ZeroDT FM-2 is a solution for providing external overvoltage transient (surge) protection for a single pair of conductors such as the 4-20 mA current loop pair to/from a device, or the output signal pair of a flow meter, or any 2 lines to/from other types of measurement devices. The ZeroDT FM-2 consists of a Type 4X, cast aluminum enclosure designed for use in hazardous locations (Class 1, Div 1) that has a ZeroDT 24-2 unit mounted inside of the housing, along with a terminal block. The ZeroDT 24-2 unit utilizes state-of-the-art advanced semiconductor SASD technology to provide fast, non-degrading protection against surges and lightning induced transients for each of the lines (conductors) with 1,200 Amps of 8/20 μs surge current protection.
- Nominal Voltage: 24 Vdc
- Max. Cont. Operating Voltage: 36 Vdc
- Maximum Surge Current (Ipeak)
- 8/20 µs, Line-to-Ground: >1,200 Amps
- 10/1000 µs, Line-to-Ground: >130 Amps
- Enclosure conduit openings: Qty 2, ¾” NPT
- Wiring: Terminal block, #24 to #10 AWG conductors

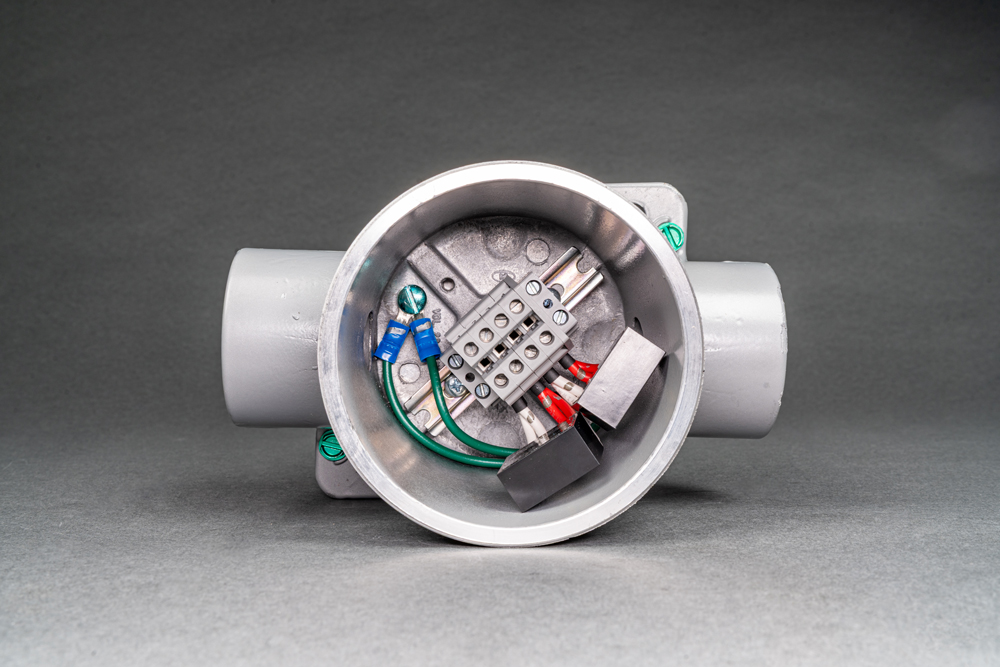

ZeroDT FM-4
- 2 loop or 4-wire protection inside a conduit enclosure for hazardous locations
- Analog signals (4-20 mA), discrete digital inputs/signals, pulsed inputs/outputs, RS-485/422/232 & digital communications as well as DC power lines.
The FM-4 can be utilized as a ‘conduit junction box’ (with built-in surge protection) to install next to the device you want to protect. The ZeroDT FM-4 is a solution for providing external overvoltage transient (surge) protection for 2 pairs of conductors such as the power input pair and output signal pair of a flow meter, or the 2 pairs to a multi-variable transmitter, or up to 4 lines to/from other types of measurement devices. The ZeroDT FM-4 consists of a Type 4X, cast aluminum enclosure designed for use in hazardous locations (Class 1, Div 1) that has two (2) of the ZeroDT 24-2 units mounted inside of the housing, along with a 4-position terminal block. The ZeroDT 24-2 units utilize state-of-the-art advanced semiconductor SASD technology to provide fast, non-degrading protection against surges and lightning induced transients for each of the 4 lines (conductors) with 1,200 Amps of 8/20 μs surge current protection.
- Nominal Voltage: 24 Vdc
- Max. Cont. Operating Voltage: 36 Vdc
- Maximum Surge Current (Ipeak)
- 8/20 µs, Line-to-Ground: >1,200 Amps
- 10/1000 µs, Line-to-Ground: >130 Amps
- Enclosure conduit openings: Qty 2, ¾” NPT
- Wiring: Terminal block, #24 to #10 AWG conductors

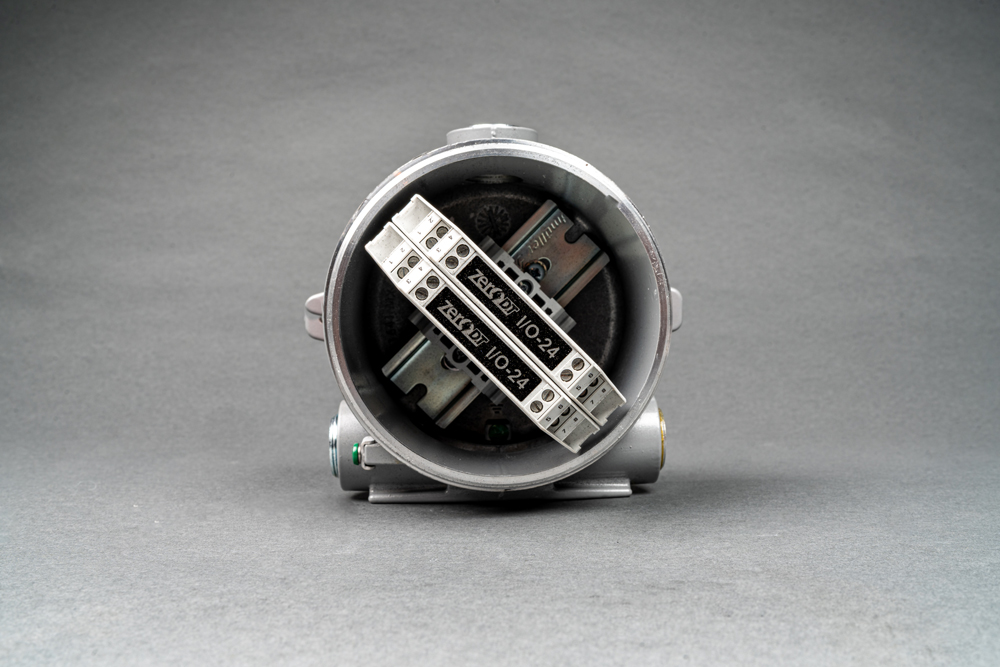

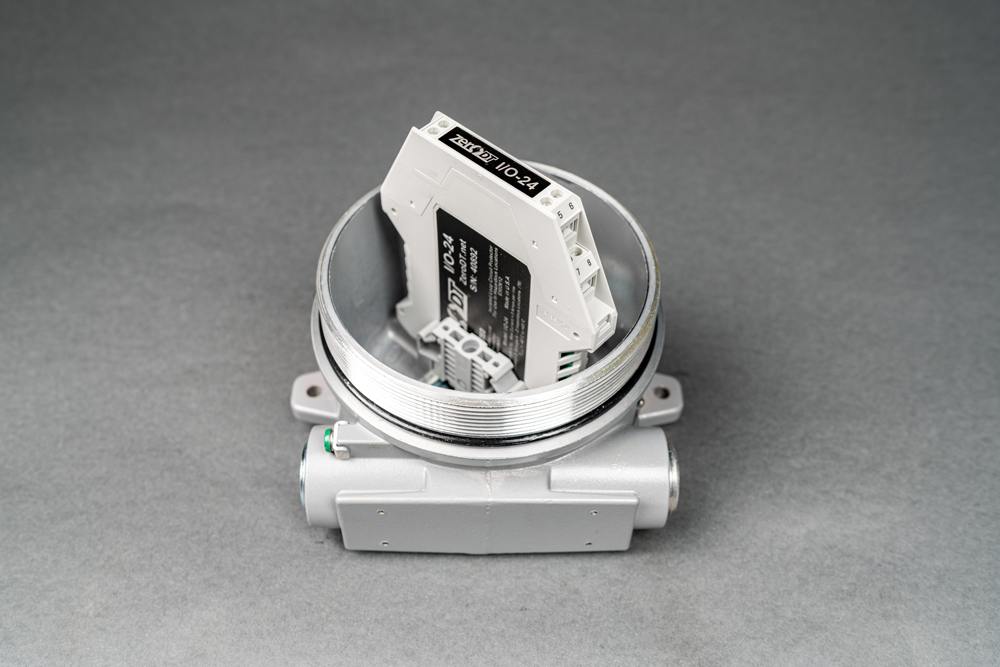

ZeroDT FM-8
- 4 loop or 8-wire protection inside a conduit enclosure for hazardous locations
- Analog signals (4-20 mA), discrete digital inputs/signals, pulsed inputs/outputs, RS-485/422/232 & digital communications as well as DC power lines.

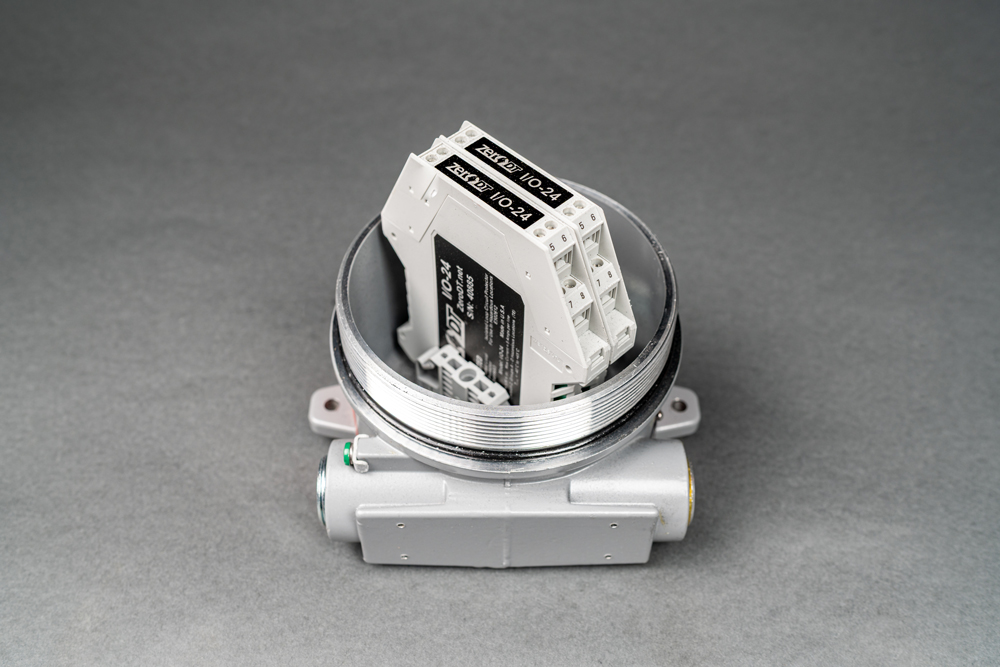

The FM-8 can be utilized as a ‘conduit junction box’ (with built-in surge protection) to install next to the device you want to protect. The ZeroDT FM-8 is a solution for providing external overvoltage transient (surge) protection for up to 4 pairs of conductors in/out of a device such as the power input pair, output pulse signal pair of a flow meter as well as 2 more pairs for digital communications or alarms. The ZeroDT FM-8 consists of a Type 4X, cast aluminum enclosure designed for use in hazardous locations (Class 1, Div 1) that has two (2) of the ZeroDT I/O-24 units mounted to a DIN rail inside of the housing. The ZeroDT I/O-24 units utilize state-of-the-art advanced semiconductor SASD technology to provide each of the 8 lines with independent protection against surges and lightning induced transients that is extremely fast and non-degrading (each of the 8 lines has its own 1,200 Amps of 8/20 μs surge current protection).
- Nominal Voltage: 24 Vdc
- Max. Cont. Operating Voltage: 36 Vdc
- Maximum Surge Current (Ipeak)
- 8/20 µs, Line-to-Ground: >1,200 Amps
- 10/1000 µs, Line-to-Ground: >130 Amps
- Enclosure conduit openings: Qty 3, ¾” NPT
- Wiring: screw compression lug, #26 to #14 AWG conductors

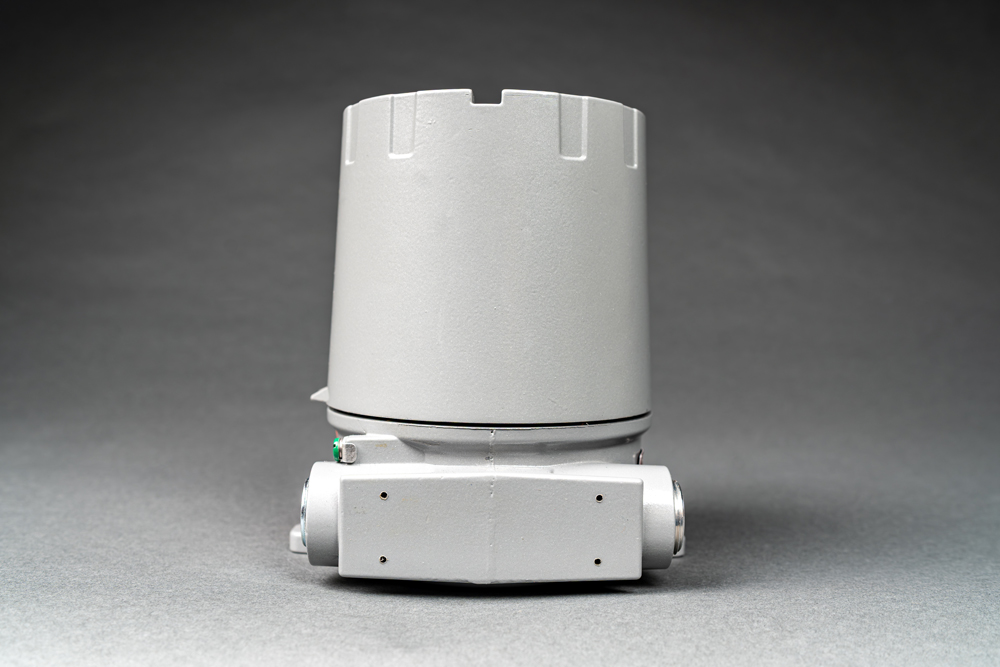

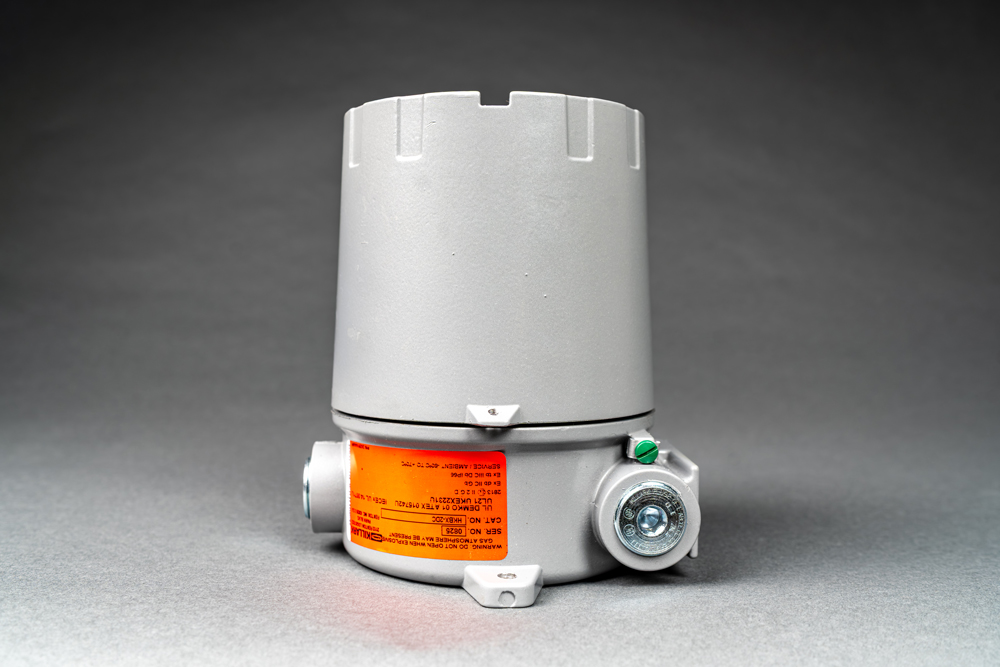

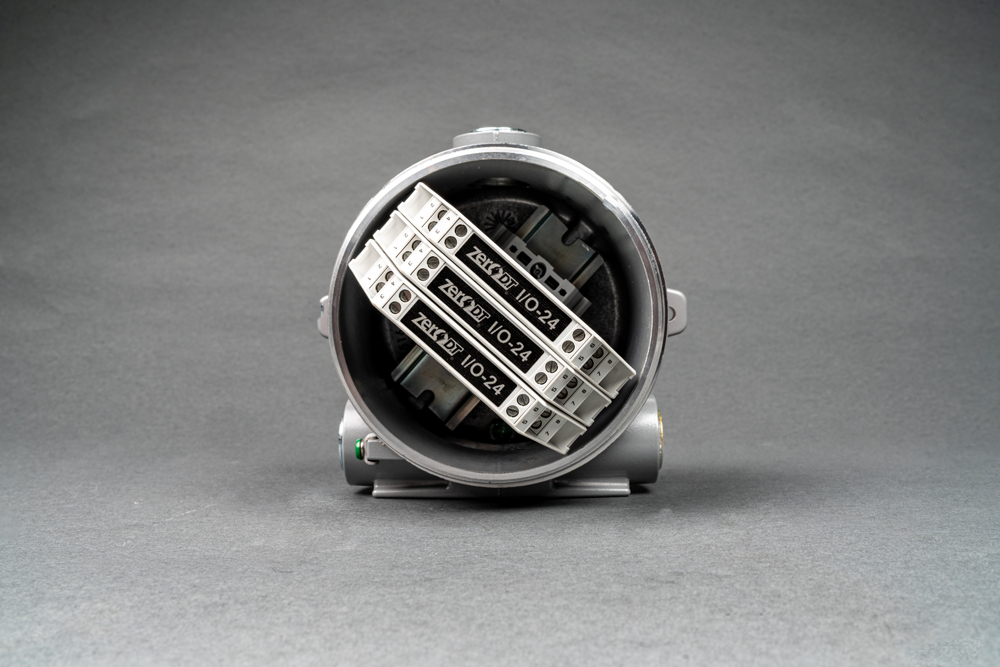

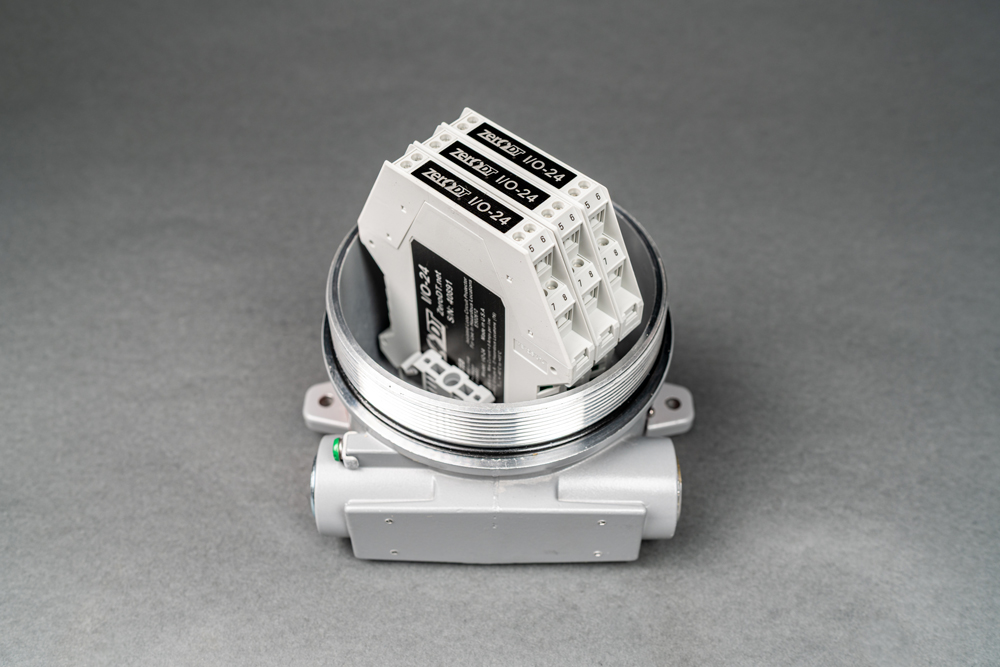

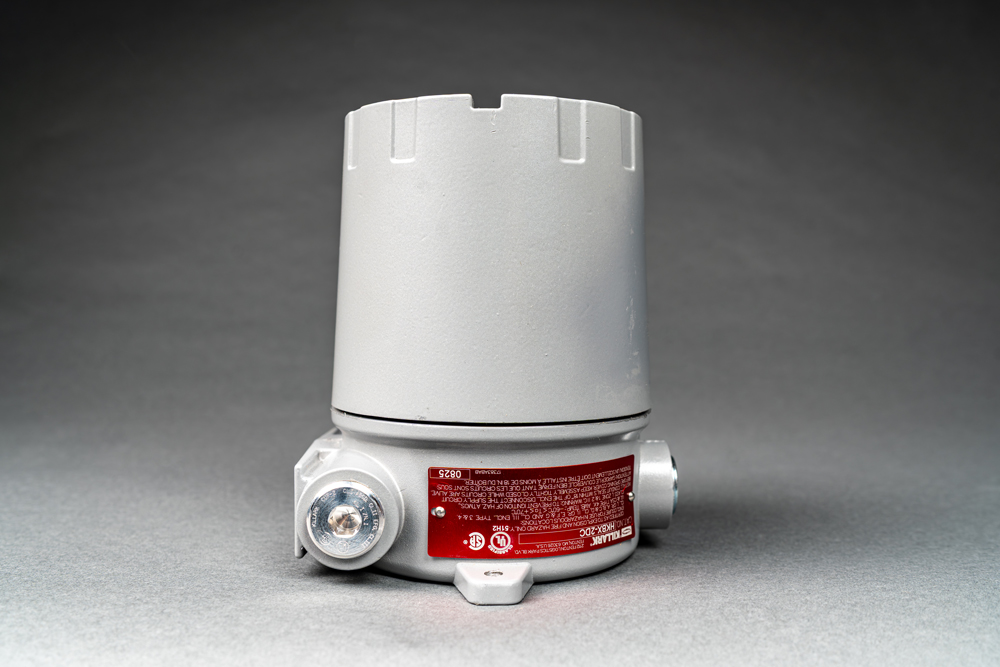

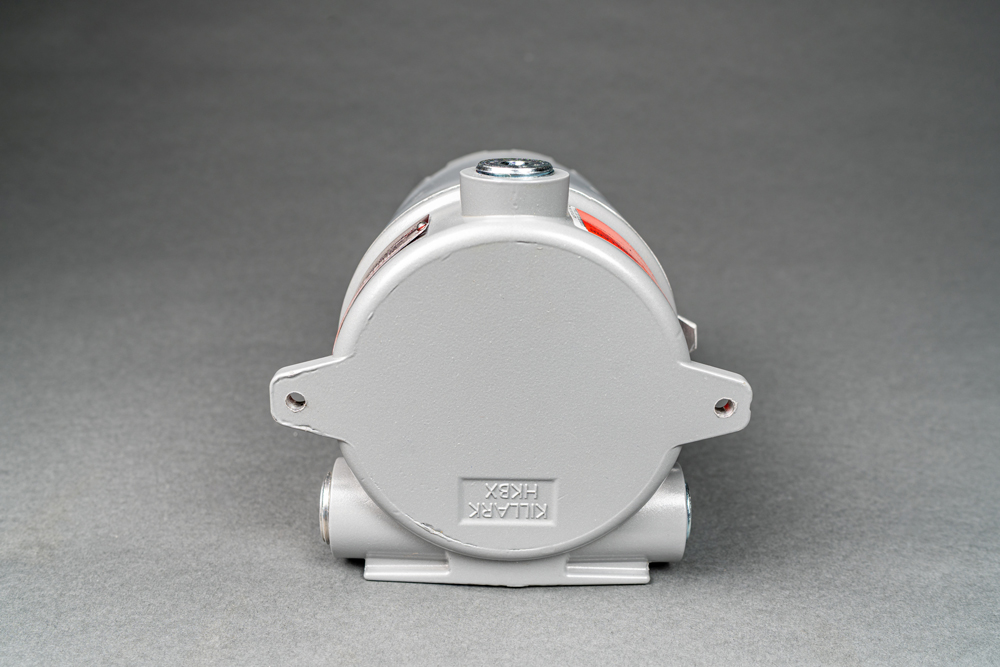

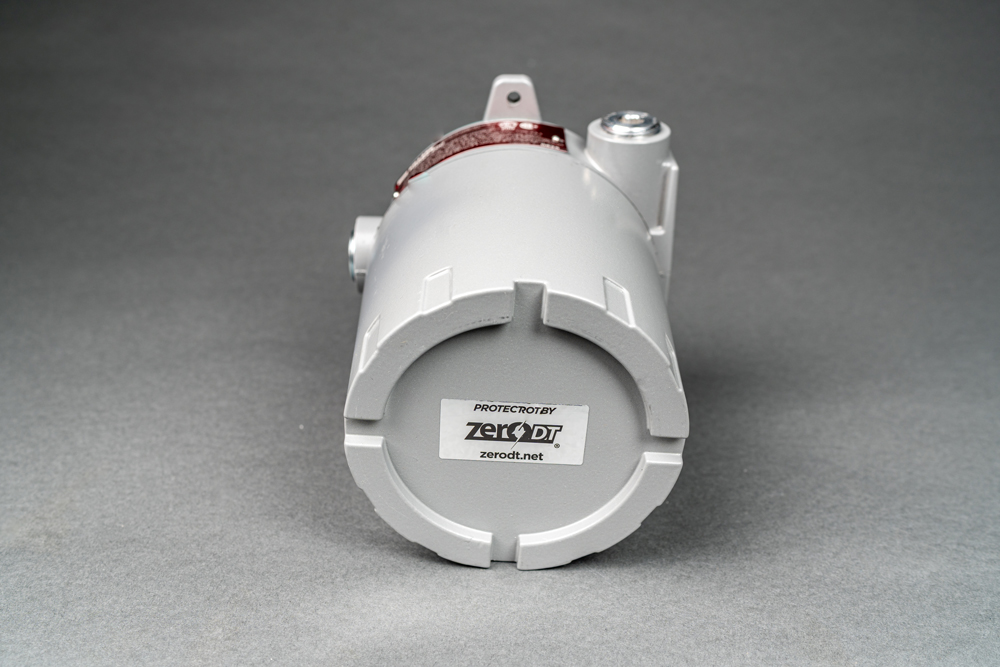

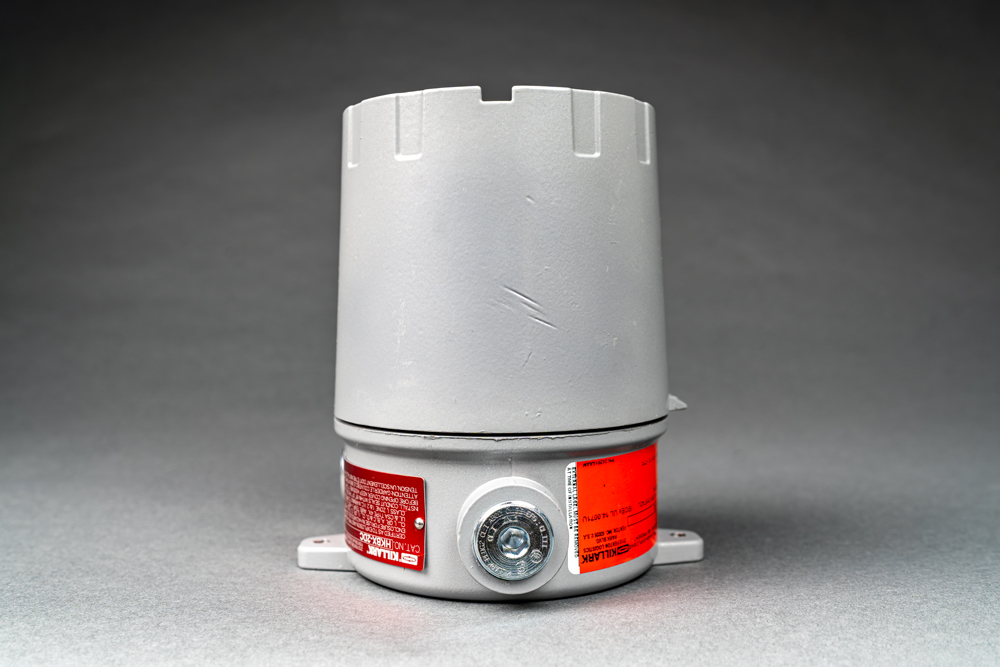

ZeroDT FM-12
- 6 loop or 12-wire protection inside a conduit enclosure for hazardous locations
- Analog signals (4-20 mA), discrete digital inputs/signals, pulsed inputs/outputs, RS-485/422/232 & digital communications as well as DC power lines.
The FM-12 can be utilized as a ‘conduit junction box’ (with built-in surge protection) to install next to the device you want to protect. The ZeroDT FM-12 is a solution for providing external overvoltage transient (surge) protection for up to 6 pairs of conductors in/out of a device such as the power input pair, output pulse signal pair of a flow meter as well as 3 more pairs for digital communications and/or alarms. The ZeroDT FM-12 consists of a Type 4X, cast aluminum enclosure designed for use in hazardous locations (Class 1, Div 1) that has two (3) of the ZeroDT I/O-24 units mounted to a DIN rail inside of the housing. The ZeroDT I/O-24 units utilize state-of-the-art advanced semiconductor SASD technology to provide each of the 12 lines with independent protection against surges and lightning induced transients that is extremely fast and non-degrading (each of the 12 lines has its own 1,200 Amps of 8/20 μs surge current protection).
- Nominal Voltage: 24 Vdc
- Max. Cont. Operating Voltage: 36 Vdc
- Maximum Surge Current (Ipeak)
- 8/20 µs, Line-to-Ground: >1,200 Amps
- 10/1000 µs, Line-to-Ground: >130 Amps
- Enclosure conduit openings: Qty 3, ¾” NPT
- Wiring: screw compression lug, #26 to #14 AWG conductors
